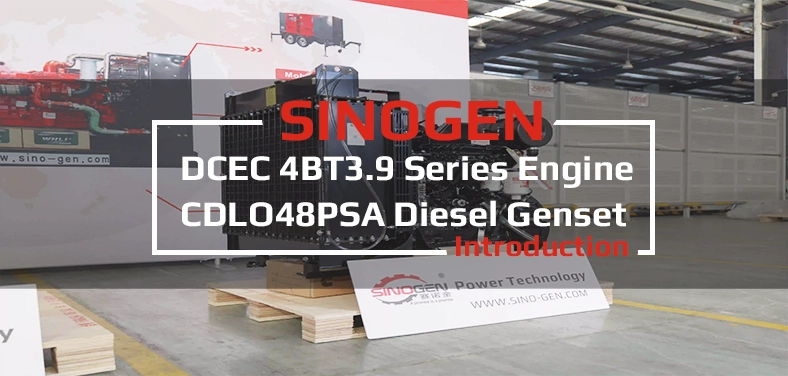

DCEC 50Hz CDLO48PSA Industrial Generator Set

DCEC CDLO48PSA Industrial engine is a complete generator set produced by SINOGEN.

DCEC CDLO48PSA is equipped with a Stanford generator and equipped with a deep sea controller to escort you.

The main power of DCEC CDLO48PSA series Industrial generator set (1500 rpm) is 48kW at 50Hz.

DCEC is a professional power system solution provider, we provide global customers with one-stop power system solutions, from power system design to power system supply, from installation to commissioning, from post-sales service support to parts supply.

DCEC is Your reliable power system partner, providing you with value for money and reliable system solutions.

Advantages of DCEC CDLO48PSA Industrial Generator Set

  • Advanced design and sophisticated manufacturing, adapt to various harsh working conditions, high strength, strong ability to work under heavy loads.

  • CMS adopts advanced design and precise manufacturing technology, which reduces fuel consumption by 20% compared with similar domestic products.

  • Manufacturing process: The cylinder block and cylinder head adopt integrated design, which eliminates the occurrence of engine water leakage and oil leakage.

  • Good reliability The integrated design of cylinder block and cylinder head prevents water and oil leakage of the engine. There are 40% fewer parts than the same type of engine, and the failure rate is greatly reduced.

  • The three-stage fuel filter ensures a balanced level of particle dispersion, protects the main components of the fuel system, and maximizes the life of the engine.

  • The cylinder bore adopts a platform mesh honing design. The perfect geometric structure effectively prevents oil leakage, and the use of advanced technology such as new piston ring components and gasket crimping and molding reduces oil loss.

Technical Specifications

Genset Model:CDLO48PSA
Prime Power:50 kW / 1500 RPM
Genset Frequency:50 Hz
Engine Model:4BTA3.9-G2
Rated Power / Speed:48 kW /1500 RPM
Alternator Brand:Stamford
Alternator Model:UCI224E
Genset Dimension:1800 mm * 700 mm * 1370 mm
Dry Weight:800kg
Lead Time:15-30 Working Days
Payment Terms:T/T ,L/C

coming soon

coming soon

Generator Model

Prime Power

Engine Model

Alternator Brand

Alternator Model

Generator Dimension

CDLO20PSA24kw/ 1500rpm4B3.9-G1StamfordPI 144E1760 * 700 * 1370 mm
CDLO30PSA36kw/ 1500rpm4BT3.9-G1StamfordPI144J1800 * 700 * 1370 mm
CDLO40PSA50kw/ 1500rpm4BTA3.9-G2StamfordUCI224D1800 * 700 * 1370 mm
CDLO48PSA50kw/ 1500rpm4BTA3.9-G2StamfordUCI224E1800 * 700 * 1370 mm
——END——



General Infomation of DCEC CDLO48PSA Industrial Generator Set

Generator ModelCDLO48PSAEngine Model4BTA3.9-G2
Bore * Stroke(mm * mm)102mm * 120mmDisplacement3.9L
Prime Power50kw/ 1500rpmStandby Power55kw/ 1500rpm
AspirationTurbocharged & Inter-cooledCooling SystemWater-cooled
Speed Stability≤5%Starting MethodElectric Starting
Governor MethodMechanical GovernorOverall size (L*W*H)1800 * 700 * 1370
Weight800kg
——END——



Engine Specifications of DCEC CDLO48PSA Industrial Generator Set

Engine BrandDCECEngine Model4BTA3.9-G2
Engine Type4 Cylinders, in LineBore * Stroke(mm * mm)102mm * 120mm
Displacement3.9LPrime Power50kw/ 1500rpm
Standby Power55kw/ 1500rpmAspirationTurbocharged & Inter-cooled
Cooling SystemWater-cooledSpeed Stability5%
Starting MethodElectric StartingGovernor MethodMechanical Governor
Fuel Consumption at 1500RPM110%53KW/66KVA220g/kW.h
100%48KW/60KVA209g/kW.h
75%36KW/45KVA204g/kW.h
50%24KW/30KVA213g/kW.h
25%12KW/15KVA229g/kW.h
——END——


Alternator Specifications of DCEC CDLO48PSA Industrial Generator Set

Alternator BrandStamfordAlternator ModelUCI224E
Rated Voltage230/400VFrequency50 HZ
Winding Connection3-phrase, 4-wirePower Factor(COS)0.8
Exciting MethodBrushless Self-excitingInsulation ClassClass H
Protection ClassIP23Winding PitchTwo Thirds
Voltage RegulatorAVRVoltage Regulation± 1.0 %
Efficiency88.3% ~ 89.5%Waveform Distortion<1.5% (no load)
Maximum Overspeed2250 Rev/MinTelephone Interference(THF)<2%
——END——


Control System Specifications of DCEC CDLO48PSA Industrial Generator Set

Control System TypeAutomationInstallation StructureDesktop or panel-mounted
Controller BrandDeepseaController ModelDSE5210
Air Circuit Breaker BrandChangshuAir Circuit Breaker Control TypeElectric
Air Circuit Breaker TypeFrame TypeAir Circuit Breaker Tripping Current2000A
485 Communication InterfaceYesRemote ControlYes
Monitoring FunctionSpeed, frequency, voltage, current, oil pressure, coolant temperature, fuel level and running hours.
Display FunctionBack-lit LCD display, Display warning, shutdown and engine status information
——END——


Optional Items of DCEC CDLO48PSA Industrial Generator Set

EngineAlternatorGenerator SeFuel SystemCanopy
Coolant heater
Lubrication Oil Heater
Space heater
AVR PMG with regulator
Anti-damp and anticorrosion
treatment
Anti-condensation heater
Tools with the machine Low fuel level alarm
Automatic fuel feeding system
Normal silent (75-78Dba@7m)
Super silent (65-68Dba@7m)
Maintenance PartsExhaust Gas SystemCooling SystemControl PanelOutput Voltage
Service items and
spare parts
available for
continuous usage.
Heat Shield for Various Applications
Low frequency silencer
Front heat protection
50 radiator for hot climates
Coolant(-30) for cold climates
Remote controller
Automatic paralleling control panel
Automatic Transfer/Change Over Switch (ATS)
380/220V
400/230V
415/240V
440/254V
——END——


Silence Canopy Specifications of DCEC CDLO48PSA Generator

Canopy MaterialGalvanized SheetCanopy Thickness2 mm
Canopy Painting MaterialPowder CoatingPainting Treatment200°C Baking Varnish
Painting ColorCustomizablePainting Color TypeVarnish/Matt Painting
Sound Insulation MaterialsRock Wool BoardInternal Panel MaterialPerforated Plate
Noisy Level dBA@1mStandard is 85 dB (Customizable between 60-85 dB)Canopy StructureHeavy Duty Type
LiftingHave Girder for LiftingFork ShippingHave Folklift Holes
Generator Dimension (mm)5300*2180*2300Wet Weight (kg)5500
——END——



Note: All Above Data are Just for Referenec, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
