DCEC CDLO320PSOA Diesel Generator Set

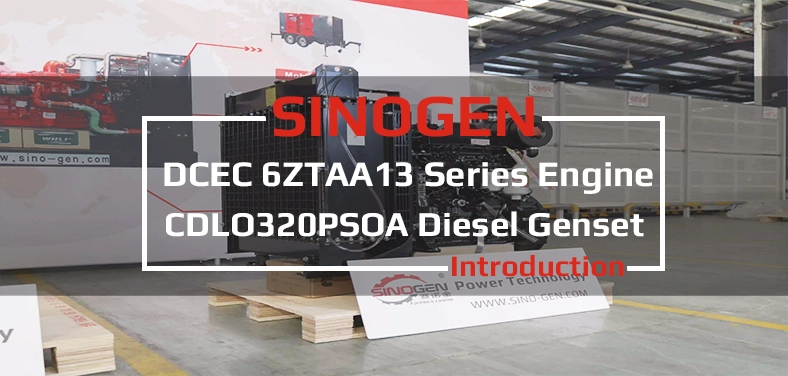

Sinogen CDLO320PSOA diesel generator set is the complete generator set manufactured by Sinogen. Sinogen CDLO320PSOA diesel generator set powered by DCEC 6ZTAA13 series diesel engine, comes with 50-degree aluminum radiator, coupled with Stamford alternator, controlled by Deepsea 6120 intelligent generator set controller.

The prime power for 50 Hz of Sinogen CDLO320PSOA diesel generator set (1500 RPM) is 320 kW.

The code C in the model name indicates that the engine brand of the unit is Cummins, the code D in the model name indicates that the fuel type is diesel, the code L in the model name indicates that the Land-used, the code O in the model name indicates that the open type, the code 320 in the model name indicates that the power is 320KW, and the code P in the model name indicates that the power type is the primary power. The code S in the model name indicates that the generator brand is Stamford, the code O in the model name indicates that the generator set has no ATS and no parallel function, and the code A in the model name indicates that the frequency of the generator set is 50hz.

As official exporting agent of DCEC, Sinogen is a professional power system solution provider, we provide one-stop power system solutions for customer from all over the world, from power system design to power system supply, from installation to commissioning, from after-sales services support to parts supply, Sinogen is your reliable power system partner that give you best value for money and reliable system solution.

Advantages of DCEC CDLO320PSOA Diesel Generator Set

1. Compact Overall Structure: Shangchai generator sets use a monolithic crankshaft, gate-type engine block, flat-cut connecting rod, and short piston, which are compact in shape and have strong adaptability for matching with other equipment.

2. Environmental Performance: The use of a new constricted combustion chamber, increased fuel injection pressure, and improved combustion process meet environmental standards. Exhaust pollutant emission values comply with the requirements of JB8891-1999, and noise levels meet the requirements of GB14097-1999 with a margin.

3. Lubrication and Cooling System Optimization: Reducing the number of external pipelines and components, using a brushless alternator as a whole, greatly improves the leakage situation and significantly enhances reliability.

4. High Altitude Operation Capability: Equipped with J98 and J114b types of waste gas turbochargers, it has strong high-altitude operation capabilities, with power loss below 3% when used in high-altitude areas above 5000m.

5. Adaptability to Harsh Environments: With high-vacuum exhaust ejection devices, three-stage cyclone German paper air filters, and low-temperature sintered ceramic piston rings, the diesel engine will not experience early wear when used in deserts or high-dust areas.

6. Electronic Fuel Injector Calibration: Uniformity of work among cylinders can be calibrated through electronic fuel injectors, with smooth torque output from the high-pressure fuel pump, low vibration, and low noise.

Technical Specifications

Genset Model: CDLO320PSOA
Prime Power: 320 kW / 1500 RPM
Genset Frequency: 50 Hz
Engine Model: 6ZTAA13-G2
Rated Power: 320 kW / 1500 RPM
Alternator Brand: Stamford
Alternator Model: HCI444F
Genset Dimension: 3210 mm * 1410 mm * 2110 mm
Dry Weight: 3180 kg
Mute Tank Dimension:: 4350 mm * 1600 mm * 2260 mm
Lead Time: 15 – 30 Working Days
Payment Terms: T/T ,L/C

coming soon

coming soon

Generator Model

Prime Power

Engine Model

Alternator Brand

Alternator Model

Generator Dimension

CDLO300PSOA 300 kW / 1500 RPM 6ZTAA13-G3 Stamford HCI444FS 3210 mm * 1410 mm * 2110 mm
CDLO320PSOA 320 kW / 1500 RPM 6ZTAA13-G2 Stamford HCI444F 3210 mm * 1410 mm * 2110 mm
CDLO350PSOA 260 kW / 1500 RPM 6ZTAA13-G2 Stamford HCI544C 3210 mm * 1410 mm * 2110 mm
CDLO360PSOA 360 kW / 1500 RPM 6ZTAA13-G4 Stamford HCI544C 3210 mm * 1410 mm * 2110 mm
——END——



General Infomation of DCEC CDLO320PSOA Diesel Generator Set

Generator Model CDLO320PSOA Engine Model 6ZTAA13-G2
Bore * Stroke 130 mm * 163 mm Displacement 13 L
Prime Power 320 kW / 400 kVA Standby Power 352 kW / 440 kVA
——END——



Engine Specifications of DCEC CDLO320PSOA Diesel Generator Set

Engine Brand DCEC Engine Model 6ZTAA13-G2
Engine Type 6 Cylinders, in Line Bore * Stroke 130 mm * 163 mm
Displacement 13 L Prime Power 522 kW / 1500 RPM
Standby Power 556 kW / 1500 RPM Aspiration Turbocharged &Charge Air Cooled
——END——



Alternator Specifications of DCEC CDLO320PSOA Diesel Generator Set

Alternator Brand Stamford Alternator Model HCI444FS
Rated Voltage 230 / 400 V Frequency 50 Hz
——END——

Coming soon

Coming soon

Coming soon

Note: All Above Data are Just for Referenec, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.

The picture of Sale Manual showing the accessories and scopes of supply.

Engine Sale Manual

The picture of Installation Drawing showing the accessories and scopes of supply.

Installation Drawing

The picture of Installation Manual showing the accessories and scopes of supply.

Installation Manual

The picture of Operation Manual showing the accessories and scopes of supply.

Operation Manual

The picture of Engine Parts Catalogue showing the accessories and scopes of supply.

Parts Catalogue

The picture of Test Report and Certifcate showing the accessories and scopes of supply.

Report & Certifcate
