DCEC 50Hz CDLO100PSOA-I Industrial Generator Set

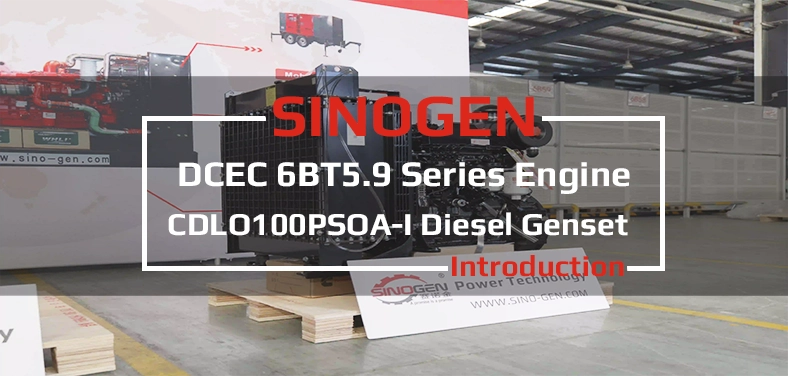

Sinogen CDLO100PSOA-I diesel generator set is the complete generator set manufactured by Sinogen. Sinogen CDLO100PSOA-I diesel generator set powered by DCEC 6BT5.9 series diesel engine, comes with 50-degree aluminum radiator, coupled with Stamford alternator, controlled by Deepsea 6120 intelligent generator set controller.
The prime power for 50 Hz of Sinogen CDLO100PSOA-I diesel generator set (1500 RPM) is 100 kW.
The code C in the model name indicates that the engine brand of the unit is Cummins, the code D in the model name indicates that the fuel type is diesel, the code L in the model name indicates that the Land-used, the code O in the model name indicates that the open type, the code 100 in the model name indicates that the power is 100KW, and the code P in the model name indicates that the power type is the primary power. The code S in the model name indicates that the generator brand is Stamford, the code O in the model name indicates that the generator set has no ATS and no parallel function, and the code A in the model name indicates that the frequency of the generator set is 50hz.
As official exporting agent of DCEC, Sinogen is a professional power system solution provider, we provide one-stop power system solutions for customer from all over the world, from power system design to power system supply, from installation to commissioning, from after-sales services support to parts supply, Sinogen is your reliable power system partner that give you best value for money and reliable system solution.
Advantages of DCEC CDLO100PSOA-I Diesel Generator Set
1. Compact Overall Structure: Shangchai generator sets use a monolithic crankshaft, gate-type engine block, flat-cut connecting rod, and short piston, which are compact in shape and have strong adaptability for matching with other equipment.
2. Environmental Performance: The use of a new constricted combustion chamber, increased fuel injection pressure, and improved combustion process meet environmental standards. Exhaust pollutant emission values comply with the requirements of JB8891-1999, and noise levels meet the requirements of GB14097-1999 with a margin.
3. Lubrication and Cooling System Optimization: Reducing the number of external pipelines and components, using a brushless alternator as a whole, greatly improves the leakage situation and significantly enhances reliability.
4. High Altitude Operation Capability: Equipped with J98 and J114b types of waste gas turbochargers, it has strong high-altitude operation capabilities, with power loss below 3% when used in high-altitude areas above 5000m.
5. Adaptability to Harsh Environments: With high-vacuum exhaust ejection devices, three-stage cyclone German paper air filters, and low-temperature sintered ceramic piston rings, the diesel engine will not experience early wear when used in deserts or high-dust areas.
6. Electronic Fuel Injector Calibration: Uniformity of work among cylinders can be calibrated through electronic fuel injectors, with smooth torque output from the high-pressure fuel pump, low vibration, and low noise.
Technical Specifications
Genset Model: | CDLO100PSOA-I |
Prime Power: | 100 kW / 1500 RPM |
Genset Frequency: | 50 Hz |
Engine Model: | 6BTA5.9-G2 |
Rated Power / Speed: | 100 kW / 1500 RPM |
Alternator Brand: | Stamford |
Alternator Model: | UCI274D |
Genset Dimension: | 2355 mm * 844 mm * 1460 mm |
Dry Weight: | 1300 kg |
Lead Time: | 15 – 30 Working Days |
Payment Terms: | T/T ,L/C |
Generator Model |
Prime Power |
Engine Model |
Alternator Brand |
Alternator Model |
Generator Dimension |
|
CDLO50PSOA | 92 kW / 1500 RPM | 6BT5.9-G1 | Stamford | UCI224F | 2220 mm * 830 mm * 1435 mm | |
CDLO75PSOA | 90 kW / 1500 RPM | 6BT5.9-G2 | Stamford | UCI274C | 2370 mm * 830 mm * 1435 mm | |
CDLO100PSOA-I | 100 kW / 1500 RPM | 6BTA5.9-G2 | Stamford | UCI274D | 2355 mm * 844 mm * 1460 mm | |
CDLO68PSOA-I | 68 kW / 1500 RPM | 6BT5.9-G1 | Stamford | UCI224G | 2150 mm * 930 mm * 1560 mm | |
CDLO72PSOA-I | 72 kW / 1500 RPM | 6BT5.9-G1 | Stamford | UCI274C | 2150 mm * 930 mm * 1560 mm | |
CDLO80PSOA-I | 80 kW / 1500 RPM | 6BT5.9-G1 | Stamford | UCI274C | 2150 mm * 930 mm * 1560 mm | |
CDLO68PSOA-II | 68 kW / 1500 RPM | 6BT5.9-G2 | Stamford | UCI224G | 2150 mm * 930 mm * 1560 mm | |
CDLO72PSOA-II | 72 kW / 1500 RPM | 6BT5.9-G2 | Stamford | UCI274C | 2150 mm * 930 mm * 1560 mm | |
CDLO80PSOA-II | 80 kW / 1500 RPM | 6BT5.9-G2 | Stamford | UCI274C | 2150 mm * 930 mm * 1560 mm | |
CDLO80PSOA-III | 80 kW / 1500 RPM | 6BT5.9-G2 | Stamford | UCI274C | 2150 mm * 930 mm * 1560 mm | |
CDLO90PSOA | 90 kW / 1500 RPM | 6BTA5.9-G2 | Stamford | UCI274D | 2150 mm * 930 mm * 1560 mm | |
CDLO100PSOA-II | 100 kW / 1500 RPM | 6BTAA5.9-G2 | Stamford | UCI274ES | 2230 mm * 930 mm * 1560 mm | |
CDLO110PSOA | 110 kW / 1500 RPM | 6BTAA5.9-G2 | Stamford | UCI274E | 2230 mm * 930 mm * 1560 mm | |
CDLO120PSOA | 120 kW / 1500 RPM | 6BTAA5.9-G12 | Stamford | UCI274F | 2400 mm * 930 mm * 1500 mm | |
——END—— |
General Infomation of DCEC CDLO100PSOA-I Industrial Generator Set |
|||
Generator Model | CDLO100PSOA-I | Engine Model | 6BTA5.9-G2 |
Bore * Stroke | 102 mm * 120 mm | Displacement | 5.9 L |
Prime Power | 100 kW / 1500 RPM | Standby Power | 121 kW / 1500 RPM |
Aspiration | Turbocharged & Inter-cooled | Cooling System | Water – cooled |
Speed Stability | ≤5 % | Starting Method | Electric Starting |
Governor Method | Mechanical Governor | Overall size (L * W * H) | 2355 mm * 844 mm * 1460 mm |
Weight | 1300 kg | ||
——END—— |
Engine Specifications of DCEC CDLO100PSOA-I Industrial Generator Set |
|||
Engine Brand | DCEC | Engine Model | 6BTA5.9-G2 |
Engine Type | 6 Cylinders, in Line | Bore * Stroke | 102 mm * 120 mm |
Displacement | 5.9 L | Prime Power | 100 kW / 1500 RPM |
Standby Power | 121 kW / 1500 RPM | Aspiration | Turbocharged & Inter-cooled |
Cooling System | Water – cooled | Speed Stability | ≤5 % |
Starting Method | Electric Starting | Governor Method | Mechanical Governor |
Fuel Consumption at 1500RPM | 1.1 | 110 kW / 138 kVA | 220 g / kW.h |
1 | 100 kW / 125 kVA | 210 g / kW.h | |
0.75 | 75 kW / 94 kVA | 205 g / kW.h | |
0.5 | 50 kW / 63 kVA | 216 g / kW.h | |
0.25 | 25 kW / 31 kVA | 230 g / kW.h | |
——END—— |
Alternator Specifications of DCEC CDLO100PSOA-I Industrial Generator Set |
|||
Alternator Brand | Stamford | Alternator Model | UCI274D |
Rated Voltage | 230 / 400 V | Frequency | 50 Hz |
Winding Connection | 3 – phrase, 4 – wire | Power Factor(COS) | 0.8 |
Exciting Method | Brushless Self – exciting | Insulation Class | Class H |
Protection Class | IP23 | Winding Pitch | Two Thirds |
Voltage Regulator | AVR | Voltage Regulation | ≤± 1.0 % |
Efficiency | 90.3 % ~ 91.1 % | Waveform Distortion | <1.5 % (no load) |
Maximum Overspeed | 2250 Rev / Min | Telephone Interference(THF) | <2 % |
——END—— |
Control System Specifications of DCEC CDLO100PSOA-I Industrial Generator Set |
|||
Control System Type | Automation | Installation Structure | Desktop or panel-mounted |
Controller Brand | Deepsea | Controller Model | DSE5210 |
Air Circuit Breaker Brand | Changshu | Air Circuit Breaker Control Type | Electric |
Air Circuit Breaker Type | Frame Type | Air Circuit Breaker Tripping Current | 2000 A |
485 Communication Interface | Yes | Remote Control | Yes |
Monitoring Function | Speed, frequency, voltage, current, oil pressure, coolant temperature, fuel level and running hours. | ||
Display Function | Back-lit LCD display, Display warning, shutdown and engine status information | ||
——END—— |
Optional Items of DCEC CDLO100PSOA-I Industrial Generator Set |
||||
Engine | Alternator | Generator Se | Fuel System | Canopy |
● Coolant heater ● Lubrication Oil Heater |
● Space heater ● AVR PMG with regulator ● Anti-damp and anticorrosion treatment ● Anti-condensation heater |
● Tools with the machine | ● Low fuel level alarm ● Automatic fuel feeding system |
● Normal silent (75 – 78 Dba @ 7 m) ● Super silent (65 – 68 Dba @ 7 m) |
Maintenance Parts | Exhaust Gas System | Cooling System | Control Panel | Output Voltage |
Service items and spare parts available for continuous usage. |
● Heat Shield for Various Applications ● Low frequency silencer |
● Front heat protection ● 50℃ radiator for hot climates ●Coolant(-30℃) for cold climates |
Remote controller ● Automatic paralleling control panel ● Automatic Transfer/Change Over Switch (ATS) |
● 380 / 220 V ● 400 / 230 V ● 415 / 240 V ● 440 / 254 V |
——END—— |
Silence Canopy Specifications of DCEC CDLO100PSOA-I Generator |
|||
Canopy Material | Galvanized Sheet | Canopy Thickness | 2 mm |
Canopy Painting Material | Powder Coating | Painting Treatment | 200°C Baking Varnish |
Painting Color | Customizable | Painting Color Type | Varnish/Matt Painting |
Sound Insulation Materials | Rock Wool Board | Internal Panel Material | Perforated Plate |
Noisy Level dBA@1m | Standard is 85 dB (Customizable between 60-85 dB) | Canopy Structure | Heavy Duty Type |
Lifting | Have Girder for Lifting | Fork Shipping | Have Folklift Holes |
Generator Dimension | 5300 mm * 2180 mm * 2300 mm | Wet Weight | 5500 kg |
——END—— |
Note: All Above Data are Just for Referenec, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
