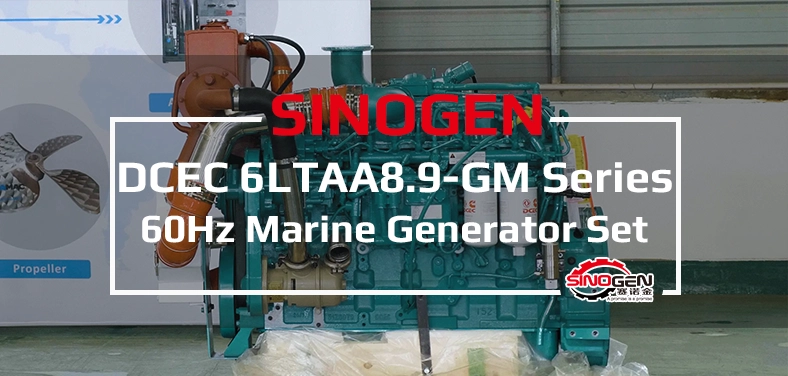

DCEC 60Hz 6LTAA8.9 Marine Auxiliary Genertor Set
Sinogen Series marine generator set is the complete generator set manufactured by Sinogen. Sinogen Series generator set powered by DCEC 6LTAA8.9-GM series marine engine, comes with 50-degree radiator, Match with Stamford, Marathon or Leroy Somer alternators for customers to choose, controlled by Deepsea, SmartGen, Comap intelligent generator set controller.
The prime power range for 60 Hz of Sinogen Series marine generator set (1800 RPM) form is 190 kW.
Sinogen Series marine generator set supports low noise generator set and chassis fuel tank, each marine generator set system is integrated and operated independently. It can generate power with multiple generator sets in parallel, and adopts a large oil passage body and a large flow oil pump to increase the oil circulation and avoid local high temperature; SinoGen can match you with a reasonable unit configuration according to your use environment and method to ensure that it can meet you.
General Specifications of 6LTAA8.9-GM Series
| Engine Type: | In-Line,6 Cylinders |
| Displacement(L): | 8.9 |
| Prime Power(kw): | 190 |
| Standby Power(kw): | N/A |
| Engine Speed: |
1600 r/min |
| Generator Frequency: | 60 Hz |
| Bore * Stroke: | 114 mm * 145 mm |
Generator Model |
Prime Power |
Engine Model |
Generator Model |
Prime Power |
Engine Model |
||
| CCFJ190J-W | 190 kW | 6LTAA8.9-GM215 | |||||
| ——END—— | |||||||
DCEC 6LTAA8.9 Series Marine Auxiliary Generator Set
This is the list of all series of DCEC 6LTAA8.9 Series Marine Auxiliary Generator Set.
Click here to find 60hz Marine Auxiliary Generator by type (Engine Type).
DCEC CCFJ190J-W Marine Auxiliary Generator Set
Genset Model: CCFJ190J-W
Engine Model: 6LTAA8.9-GM215
Alternator Model：UCDM 274J
Rate Power: 190kW / 237.5kVA
Frequency: 60 Hz
