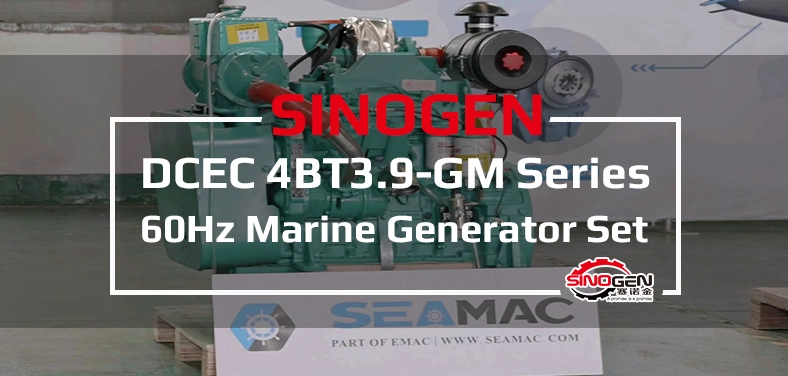

DCEC 60Hz 4BT3.9 Marine Auxiliary Generator Set
Sinogen Series marine generator set is the complete generator set manufactured by Sinogen. Sinogen Series generator set powered by DCEC 4BT3.9-GM series marine engine, comes with 50-degree radiator, Match with Stamford, Marathon or Leroy Somer alternators for customers to choose, controlled by Deepsea, SmartGen, Comap intelligent generator set controller.
The prime power range for 60 Hz of Sinogen Series marine generator set (1800 RPM) form is 40-50 kW.
Sinogen Series marine generator set supports low noise generator set and chassis fuel tank, each marine generator set system is integrated and operated independently. It can generate power with multiple generator sets in parallel, and adopts a large oil passage body and a large flow oil pump to increase the oil circulation and avoid local high temperature; SinoGen can match you with a reasonable unit configuration according to your use environment and method to ensure that it can meet you.
General Specifications of 4BT3.9-GM Series
| Engine Type: | In-Line,4 Cylinders |
| Displacement(L): | 3.9 |
| Prime Power(kw): | 65 |
| Standby Power(kw): | 72 |
| Engine Speed: |
1800 r/min |
| Generator Frequency: | 60 Hz |
| Bore * Stroke: | 102 mm * 120 mm |
| Wet Weight: | 650 kg |
| Dimension(L * W * H): | 1650 mm * 850 mm * 1270 mm |
Generator Model |
Prime Power |
Engine Model |
Generator Model |
Prime Power |
Engine Model |
||
| CDMO40PSOB | 65 kW / 81.25 kVA | 4BTA3.9-GM65 | CDMO50PSOB | 65 kW / 81.25 kVA | 4BTA3.9-GM65 | ||
| CCFJ40J-W | 65 kW | 4BTA3.9-GM65 | CCFJ50J-W | 65 kW | 4BTA3.9-GM65 | ||
| ——END—— | |||||||
DCEC 4BT3.9 Series Marine Auxiliary Generator Set
This is the list of all series of DCEC 4BT3.9 Series Marine Auxiliary Generator Set.
Click here to find 60hz Marine Auxiliary Generator Set by type (Engine Type).
DCEC CCFJ50J-W Marine Auxiliary Generator Set
Genset Model: CCFJ50J-W
Engine Model: 4BTA3.9-GM65
Alternator Model：UCM 224E
Rate Power: 50kW / 62.5kVA
Frequency: 60 Hz
DCEC CCFJ40J-W Marine Auxiliary Generator Set
Genset Model: CCFJ40J-W
Engine Model: 4BTA3.9-GM65
Alternator Model：UCM 224D
Rate Power: 40kW / 50kVA
Frequency: 60 Hz
DCEC 60Hz CDMO40PSOB Marine Auxiliary Generator Set
Prime Power: 65 kW / 81.25 kVA
Standby Power: 72 kW / 90 kVA
Engine Model: 4BTA3.9-GM65
Engine Speed: 1500 RPM
Frequency: 60 Hz
DCEC 60Hz CDMO50PSOB Marine Auxiliary Generator Set
Prime Power: 65 kW / 81.25 kVA
Standby Power: 72 kW / 90 kVA
Engine Model: 4BTA3.9-GM65
Engine Speed: 1500 RPM
Frequency: 60 Hz
