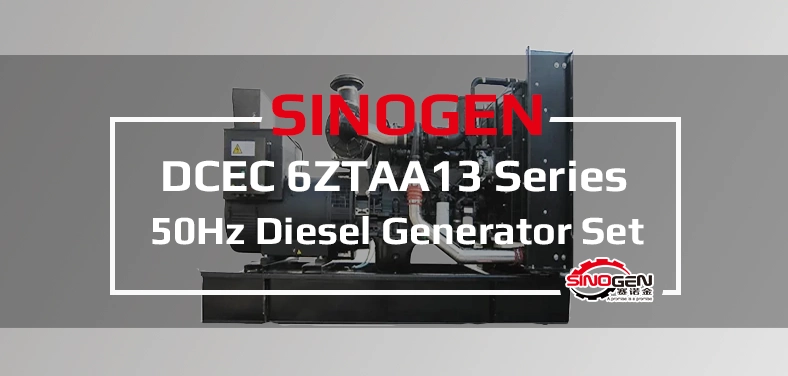

DCEC 50Hz 6ZTAA13 Diesel Generator Set
Sinogen Series diesel generator set is the complete generator set manufactured by Sinogen. Sinogen Series generator set powered by DCEC 6ZTAA13 series diesel engine, comes with 50-degree radiator, Match with Stamford, Marathon or Leroy Somer alternators for customers to choose, controlled by Deepsea, SmartGen, Comap intelligent generator set controller.
The prime power range for 50 Hz of Sinogen Series diesel generator set (1500 RPM) form is 300-360 kW.
Sinogen Series diesel generator set supports low noise generator set and chassis fuel tank, each diesel generator set system is integrated and operated independently. It can generate power with multiple generator sets in parallel, and adopts a large oil passage body and a large flow oil pump to increase the oil circulation and avoid local high temperature; SinoGen can match you with a reasonable unit configuration according to your use environment and method to ensure that it can meet you.
General Specifications of 6ZTAA13 Series
| Engine Type: | In-Line,6 Cylinders |
| Displacement(L): | 13 |
| Prime Power(kw): | 300 – 360 |
| Standby Power(kw): | 330 – 380 |
| Engine Speed: |
1500 r/min |
| Generator Frequency: | 50 Hz |
| Bore * Stroke: | 130 mm * 163 mm |
Generator Model |
Prime Power |
Engine Model |
Generator Model |
Prime Power |
Engine Model |
|||
| CDLO300PSOA | 300 kW / 1500 RPM | 6ZTAA13-G3 | CDLO320PSOA | 320 kW / 1500 RPM | 6ZTAA13-G2 | |||
| CDLO350PSOA | 350 kW / 1500 RPM | 6ZTAA13-G2 | CDLO360PSOA | 360 kW / 1500 RPM | 6ZTAA13-G4 | |||
| ——END—— | ||||||||
DCEC 6ZTAA13 Series Diesel Generator Set
This is the list of all series of DCEC 6ZTAA13 Series Diesel Generator Set.
Click here to find 50hz diesel Generator Set by type (Engine Type).
DCEC CDLO360PSOA Diesel Generator Set
Genset Model: CDLO360PSOA
Engine Model: 6ZTAA13-G4
Alternator Model：HCI544C
Rate Power: 360kW / 450kVA
Frequency: 50 Hz
DCEC CDLO350PSOA Diesel Generator Set
Genset Model: CDLO350PSOA
Engine Model: 6ZTAA13-G2
Alternator Model：HCI544C
Rate Power: 350kW / 437.5kVA
Frequency: 50 Hz
DCEC CDLO320PSOA Diesel Generator Set
Genset Model: CDLO320PSOA
Engine Model: 6ZTAA13-G2
Alternator Model：HCI444F
Rate Power: 320kW / 400kVA
Frequency: 50 Hz
DCEC CDLO300PSOA Diesel Generator Set
Genset Model: CDLO300PSOA
Engine Model: 6ZTAA13-G3
Alternator Model：HCI444FS
Rate Power: 300kW / 375kVA
Frequency: 50 Hz
