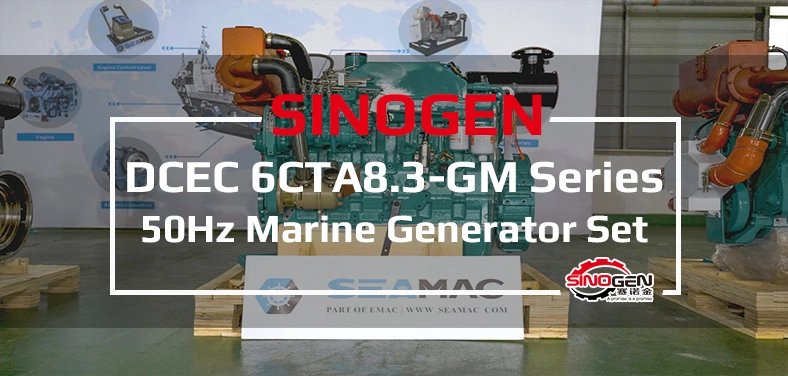

DCEC 50Hz 6CTA8.3 Marine Auxiliary Generator Set
Sinogen Series marine generator set is the complete generator set manufactured by Sinogen. Sinogen Series generator set powered by DCEC 6CTA8.3-GM series marine engine, comes with 50-degree radiator, Match with Stamford, Marathon or Leroy Somer alternators for customers to choose, controlled by Deepsea, SmartGen, Comap intelligent generator set controller.
The prime power range for 50 Hz of Sinogen Series marine generator set (1500 RPM) form is 155 kW.
Sinogen Series marine generator set supports low noise generator set and chassis fuel tank, each marine generator set system is integrated and operated independently. It can generate power with multiple generator sets in parallel, and adopts a large oil passage body and a large flow oil pump to increase the oil circulation and avoid local high temperature; SinoGen can match you with a reasonable unit configuration according to your use environment and method to ensure that it can meet you.
General Specifications of 6CTA8.3-GM Series
| Engine Type: | 6 Cylinders |
| Displacement(L): | 8.3 |
| Prime Power(kw): | 100 – 140 |
| Standby Power(kw): | N/A |
| Engine Speed: |
1500 r/min |
| Generator Frequency: | 50 Hz |
| Bore * Stroke: | 114 mm * 135 mm |
Generator Model |
Prime Power |
Engine Model |
Generator Model |
Prime Power |
Engine Model |
|||
| CCFJ100J-W | 100 kW | 6CT8.3-GM115 | CCFJ112J-W | 112 kW | 6CTA8.3-GM155 | |||
| CCFJ120J-W | 120 kW | 6CTA8.3-GM155 | CCFJ128J-W | 128kW | 6CTA8.3-GM155 | |||
| CCFJ140J-W | 140 kW | 6CTA8.3-GM155 | ||||||
| ——END—— | ||||||||
DCEC 6CTA8.3 Series Marine Auxiliary Generator Set
This is the list of all series of DCEC 6CTA8.3 Series Marine Auxiliary Generator Set.
Click here to find 50hz Marine Auxiliary Generator by type (Engine Type).
DCEC CCFJ140J-W Marine Auxiliary Generator Set
Genset Model: CCFJ140J-W
Engine Model: 6CTA8.3-GM155
Alternator Model：UCM 274H
Rate Power: 140kW / 175kVA
Frequency: 50 Hz
DCEC CCFJ128J-W Marine Auxiliary Generator Set
Genset Model: CCFJ128J-W
Engine Model: 6CTA8.3-GM155
Alternator Model：UCM 274G
Rate Power: 128kW / 160kVA
Frequency: 50 Hz
DCEC CCFJ120J-W Marine Auxiliary Generator Set
Genset Model: CCFJ120J-W
Engine Model: 6CTA8.3-GM155
Alternator Model：UCM 274G
Rate Power: 120kW / 150kVA
Frequency: 50 Hz
DCEC CCFJ112J-W Marine Auxiliary Generator Set
Genset Model: CCFJ112J-W
Engine Model: 6CT8.3-GM115
Alternator Model：UCM 274E
Rate Power: 112kW / 140kVA
Frequency: 50 Hz
DCEC CCFJ100J-W Marine Auxiliary Generator Set
Genset Model: CCFJ100J-W
Engine Model: 6CT8.3-GM115
Alternator Model：UCM 274E
Rate Power: 100kW / 125kVA
Frequency: 50 Hz
